    DIY: Footwell Lights

    I saw an old post about doing foot well lights by GregH so I thought I would give it a go.

    The BMW parts I used were:

    63 31 8 360 588 Lamp (2x)
    61 13 8 377 072 Socket Housing (3-pin connector) (2x)
    61 13 0 005 197 Bushing Contact (4x)

    If you take out your dome light and take a look at the wires you will see a Brown/Red wire (power) and a Brown wire (ground). These are the wires to use if you want the new foot well lights to work with the dome light switch settings.

    Using these wires the foot well lights can be set to come on with the dome light when you open the door and they fade out, or you can turn them on with the dome light.

    I did not want to run wires from the dome light down the side pillar, so I thought I have to be able to find the wires when I remove the glove box. I found a Brown/Red and a Brown wire and I exposed the core to see if these would work - THEY DID.

    It was then just a matter of connecting a few wires into these two cables, making holes in the panel under the glove box and steering wheel, and connecting the lights.

    I really like how it looks and it will make it so much easier to find things if they drop on the floor. Was also easier to vacuum with the lights on.


    This is where I found the red/brown and brown wires that looked like they went up the back and into the side pillar going up to the dome light.



    This is a picture from underneath to show the new wires I connected. I also put in two wires to run over to the driver’s side. The two black wires go the the foot well light, the red & brown wires go over to the driver's side.

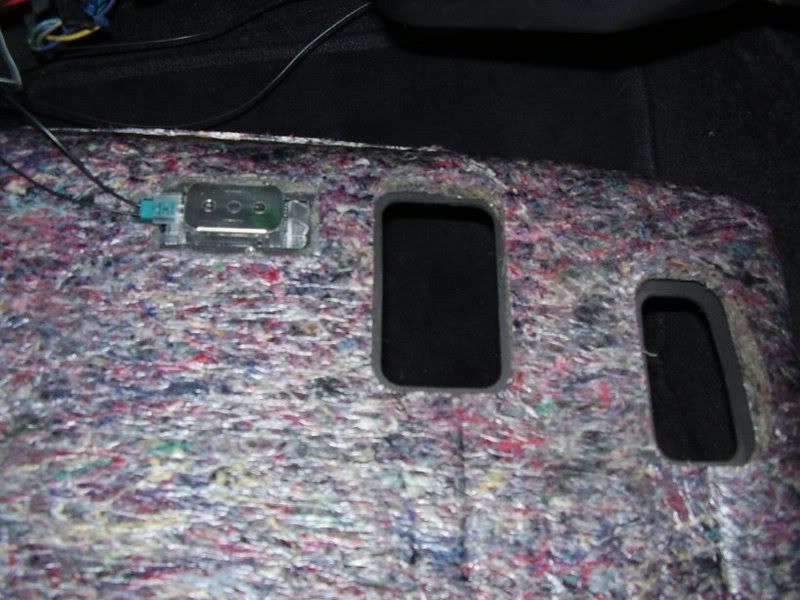

    This is the light inserted in the hole I cut on the passenger side.



    Foot well lights off during the day with my car in an open car port. Still had the old material seats adn the old steering wheel



    Foot well lights on also during the day in the car port.

    Last edited by jarozila; 10-12-2008 at 10:00 PM. Reason: Updated picture links
